T841 – Tap 6HX B GUN NH+ DIN376 PM-Co TiCN
£68.78

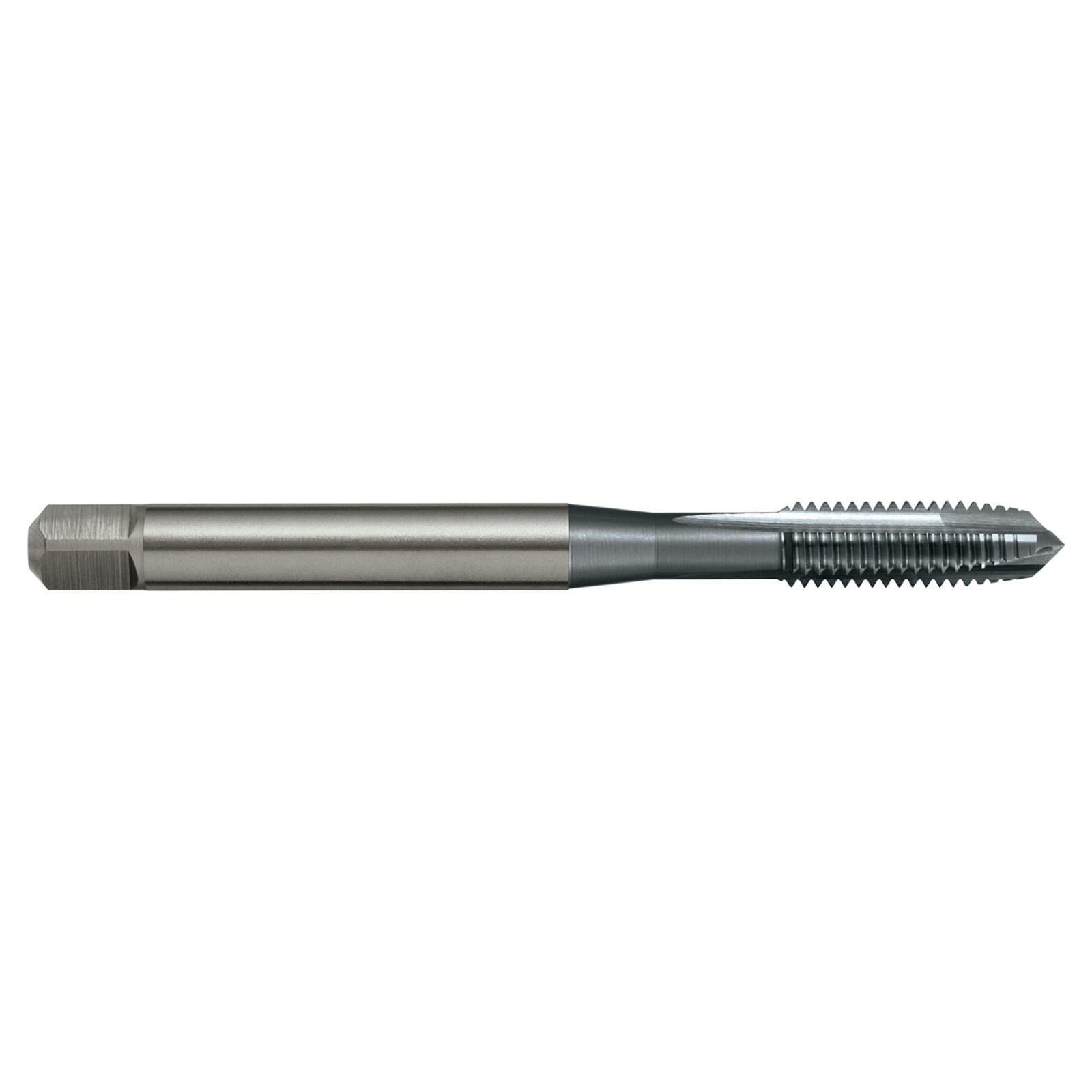

Gun Tap 6HX B PM-Co TiCN
Range
Features
Materials & Applications
Range

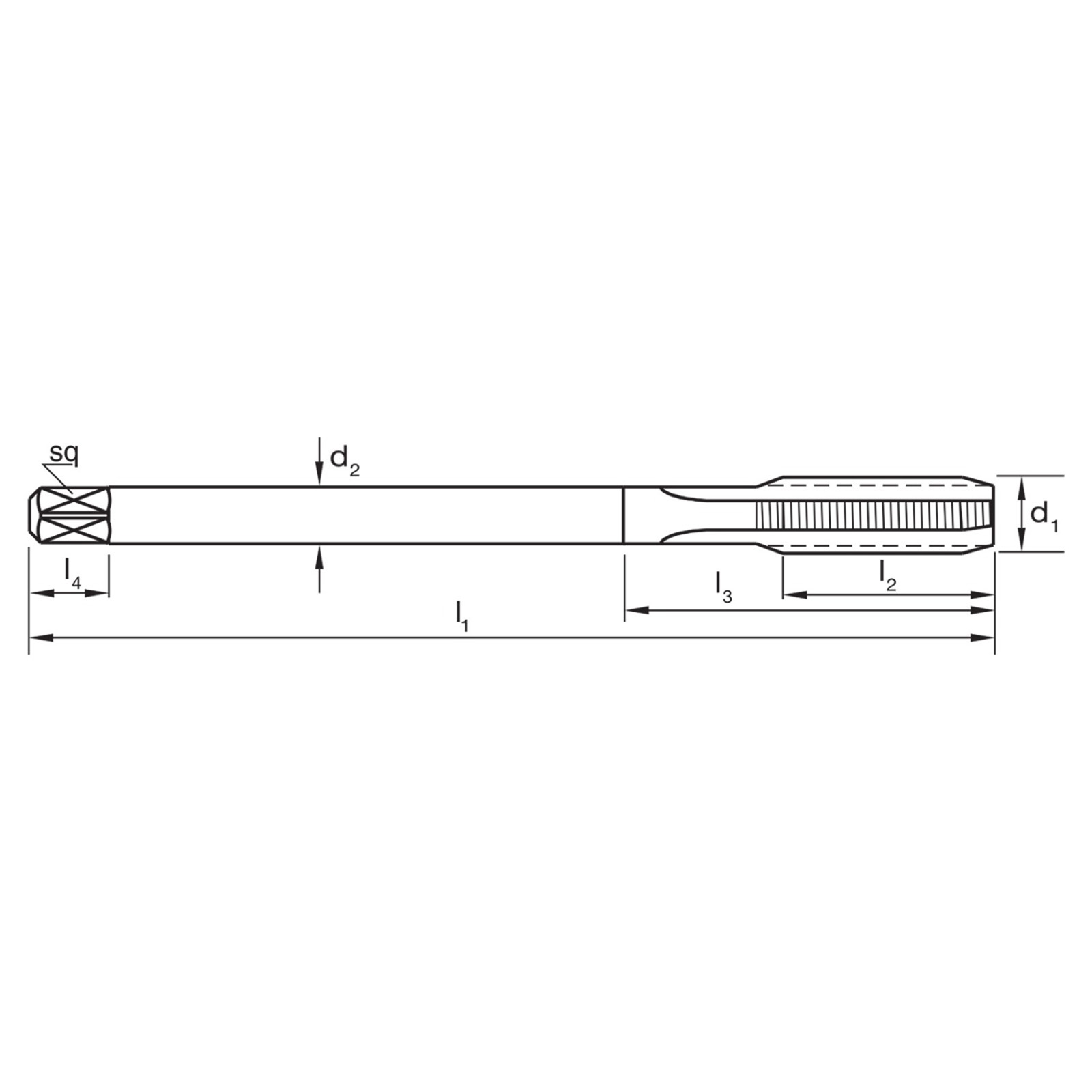

For technical drawing downloads click on the Item # link
| Item # | D1 Ø | Pitch | L1 OAL | L3 Reach | D2 | Square | L4 Sq Length | Z Teeth | Drill Ø | Price | Stock | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T8411200 | M12 | 1.8 | 110 | 9.0 | 10 | 3 | 10.2 | £68.78 | 50 in stock | |||
| T8411400 | M14 | 2.0 | 110 | 11.0 | 12 | 3 | 12.0 | £84.68 | 10 in stock | |||
| T8411600 | M16 | 2.0 | 110 | 12.0 | 12 | 4 | 14.0 | £100.59 | 15 in stock | |||
| T8412000 | M20 | 2.5 | 102 | 16.0 | 15 | 4 | 17.5 | £169.37 | 5 in stock | |||
| T8412400 | M24 | 3.0 | 160 | 18.0 | 17 | 4 | 21.0 | £251.37 | 3 in stock |
Features
TAP T841 6HX B GUN NH+ DIN376 PM-Co TiCN DIN Taps Metrc, Spiral Point (Gun) Suitable for harder materials up to 42 HRC Through Holes Depths up to 3 x d1
Materials & Applications
