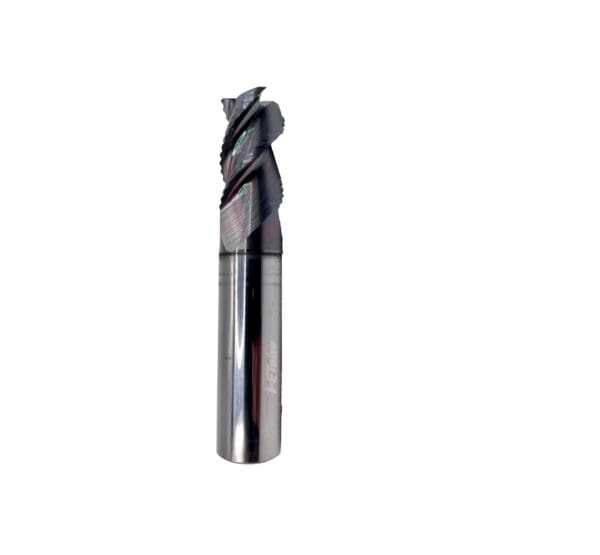

231 Solid Carbide 3 Flute Roughing End Mill
£47.92
Solid Carbide, 3 Flute Roughing End Mill, Variable Helix, 1 Tooth to Centre, Special NR Geometry, HCR Coating, Product Group FC
For technical drawing downloads click on the Item # link
| Item # | D1 Ø | D2 (h6) Shank Ø | D3 Relief Ø | L1 OAL | L2 Flute | L3 Reach | R Radius | Size | Z Teeth | Price | Stock | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2310600 | 6 | 6 | 5.7 | 60 | 13 | 23 | 3 | £49.36 | 21 in stock (can be backordered) | |||
| 2310800 | 8 | 8 | 7.7 | 64 | 18 | 28 | 3 | £61.46 | 18 in stock (can be backordered) | |||
| 2311000 | 10 | 10 | 9.5 | 73 | 21 | 31 | 3 | £76.62 | 12 in stock (can be backordered) | |||
| 2311200 | 12 | 12 | 11.5 | 84 | 25 | 35 | 3 | £93.09 | 5 in stock (can be backordered) | |||
| 2311600 | 16 | 16 | 15.3 | 93 | 32 | 50 | 3 | £138.51 | 8 in stock (can be backordered) | |||
| 2312000 | 20 | 20 | 19.3 | 104 | 40 | 60 | 3 | £204.60 | 9 in stock (can be backordered) |
High performance, aluminum style endmill for roughing applications. Special NR geometry allows for heavier cuts on lower powered machines. For soft non-ferrous aluminium alloys. The tool consists of a high rake angle for long chipping materials, complemented with a Variable Helix / Variable Index, Polished Fluting and HCR Coating. Excellent performance in Trochoidal milling applications
Pocket Milling
Ramping
Side Finishing
Slotting
