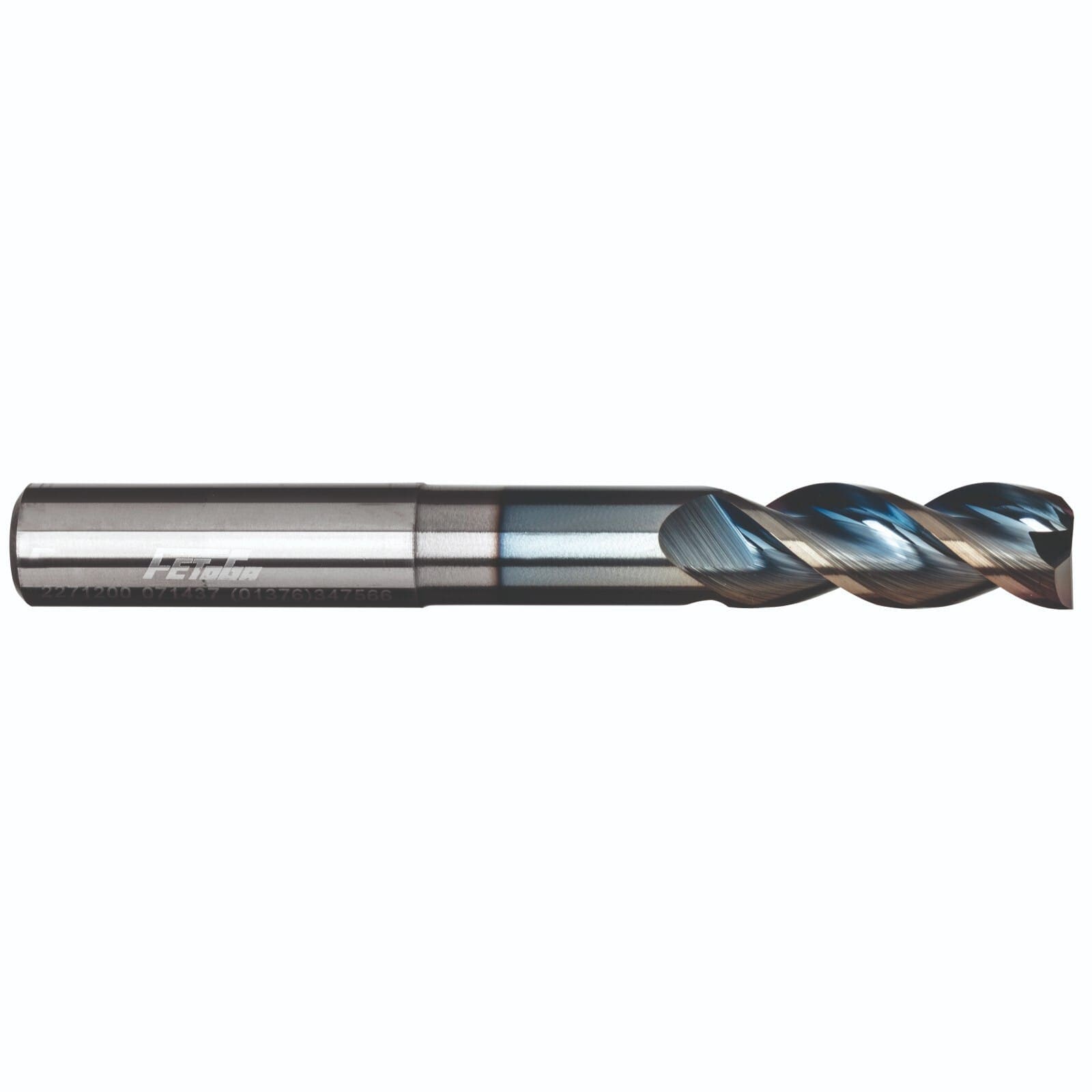

227 Solid Carbide 3 Flute Long Series End Mill
£40.16
40° Helix, 3 Teeth to Centre, Deep Gullets, Balanced Tool, HCR Coating, Extended Reach, HSM. Product group FC
For technical drawing downloads click on the Item # link
| Item # | D1 Ø | D2 (h6) Shank Ø | D3 Relief Ø | L1 OAL | L2 Flute | L3 Reach | R Radius | Size | Z Teeth | Price | Stock | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2270600 | 6.0 | 6 | 5.7 | 100 | 24 | 50 | 3 | £50.18 | 4 in stock (can be backordered) | |||
| 2270800 | 8.0 | 8 | 7.7 | 100 | 25 | 50 | 3 | £60.63 | 9 in stock (can be backordered) | |||
| 2271000 | 10.0 | 10 | 9.5 | 100 | 27 | 50 | 3 | £72.90 | 8 in stock (can be backordered) | |||
| 2271200 | 12.0 | 12 | 11.5 | 100 | 32 | 60 | 3 | £86.21 | 9 in stock (can be backordered) | |||
| 2271600 | 16.0 | 16 | 15.3 | 125 | 39 | 80 | 3 | £133.99 | 7 in stock (can be backordered) | |||
| 2272000 | 20.0 | 20 | 19.3 | 150 | 42 | 100 | 3 | £214.86 | Available on back-order |
High performance, 3 flute solid carbide end mill, especially designed with 3 teeth to centre to create a balanced tool, extra reach and with wide gullets to enable the cutter to plunge, ramp and run at higher feed rates. Featuring a specifically designed HCR coating for Aluminium. The coating allows for roughing and finishing using the same tool, enables higher productivity, gives excellent surface finish and provides longer tool life.
Pocket Milling
Ramping
Side Finishing
Side Roughing
Slotting
